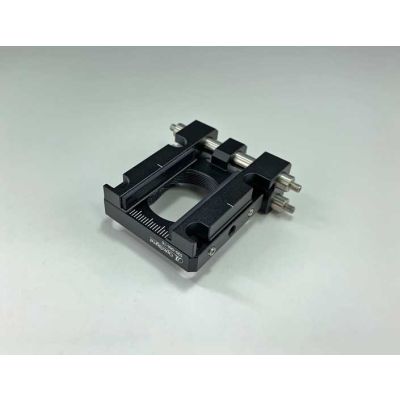

Cage Square Optics holder

C30-CHA-16UU

Skip to the beginning of the images gallery

Holders for fixing square optics up to 4 to 16 mm in height and 5 mm in thickness. The upper and lower holder arms are covered with non-slip rubber sheets.

Details

More Information

More Information
Name	Cage Square Optics holder
Weight	0.0620kgs
Guide	Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. For consultation of optical system using cage system please contact Sales.
Attention	If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material	Aluminum
Guide Rod Diameter (Spaceing between rod)	φ6mm (30x30mm)
Compatible Optics Diameter	4 - 16mm
Compatible Optics Thickness	ー5mm
Opening width	3 - 15mm
Installation	Slide from the end of rods

In stock

SKU

C30-CHA-16UU

€143.90

Holders for fixing square optics up to 4 to 16 mm in height and 5 mm in thickness. The upper and lower holder arms are covered with non-slip rubber sheets.
