In stock
SKU
C30-KNH
It is a mirror holder for normal incidence placed at the end of the rod. Precise angle adjustment is possible with the kinematic mirror mount.
Customize product
Filters
Enabled filters :
Remove all filters
Attention
▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
| Name | Delivery | Price | Add to cart | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
Cage Normal Incidence Mirror Mount

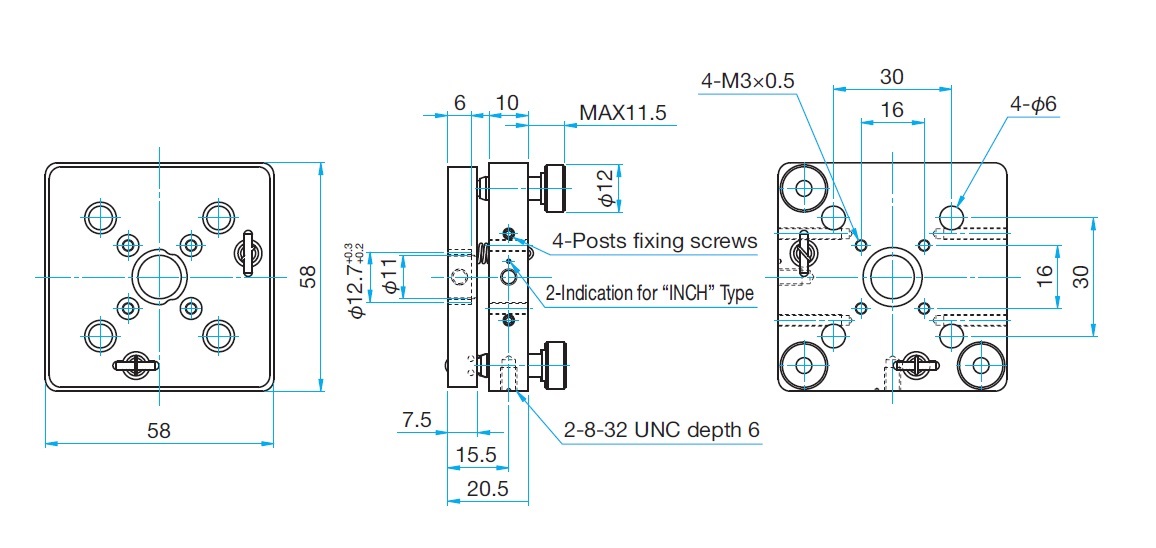

C30-KNH-12.7UU |
3-5 days
|
€195.10
|
|
|
||||||||||||||||||||||
|
i
Cage Normal Incidence Mirror Mount

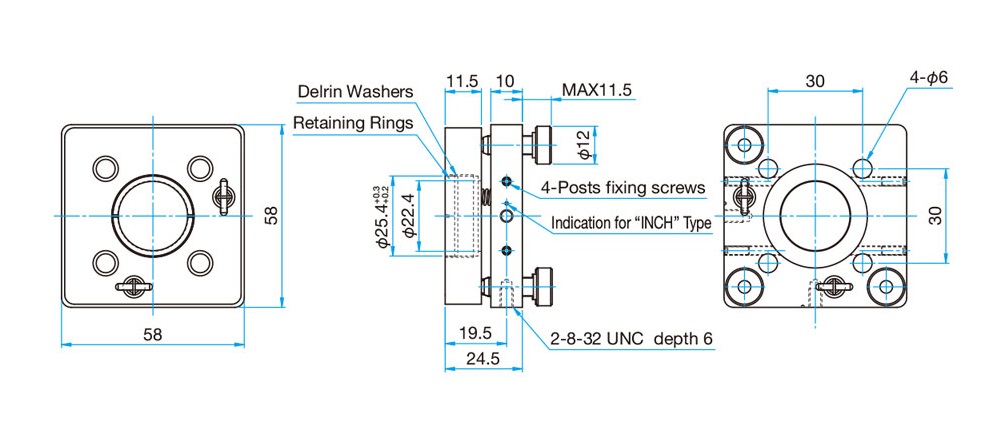

C30-KNH-M25.4UU |
3-5 days
|
€107.90
|
|
|
||||||||||||||||||||||
|
i
Cage Normal Incidence Mirror Mount

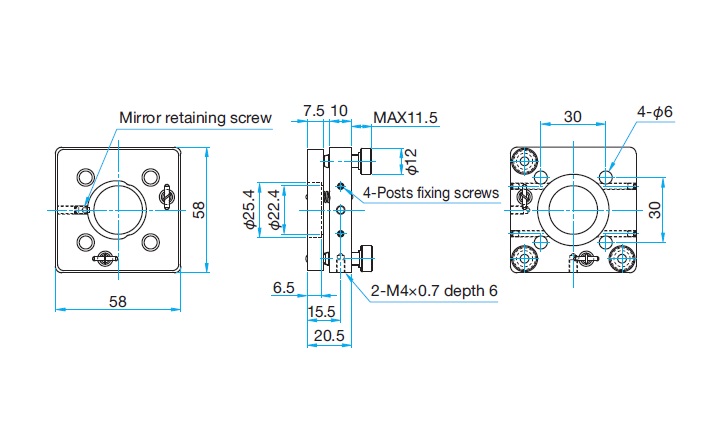

C30-KNH-25.4 |
in stock
|
€98.90
|
|
|
||||||||||||||||||||||
|
i
Cage Normal Incidence Mirror Mount

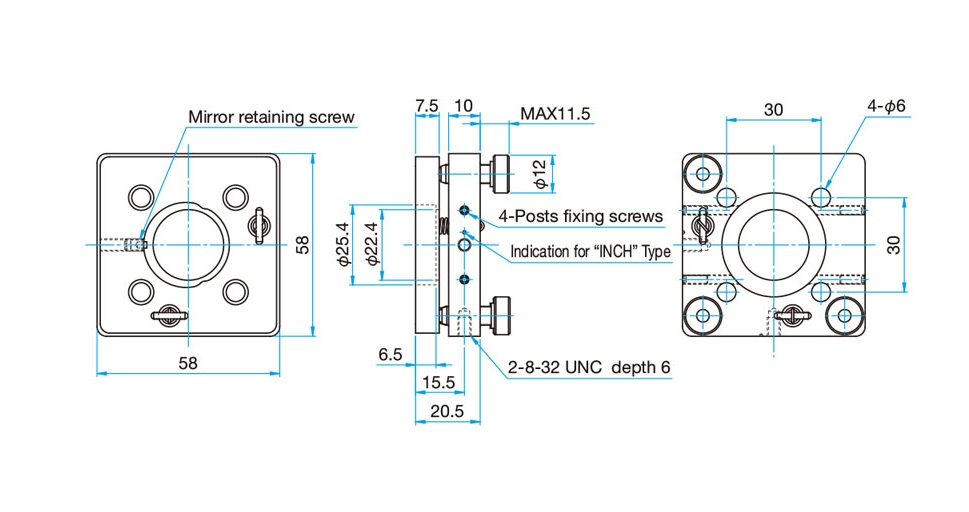

C30-KNH-25.4UU |
3-5 days
|
€98.90
|
|
|
||||||||||||||||||||||
|
i
Cage Normal Incidence Mirror Mount

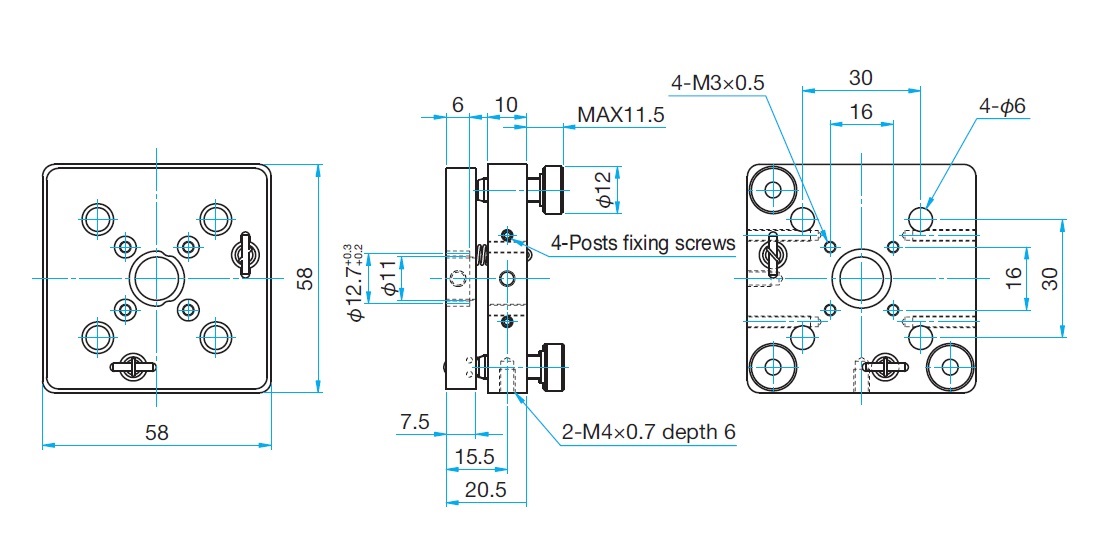

C30-KNH-12.7 |
3-5 days
|
€195.10
|
|
|
||||||||||||||||||||||
|
i
Cage Normal Incidence Mirror Mount

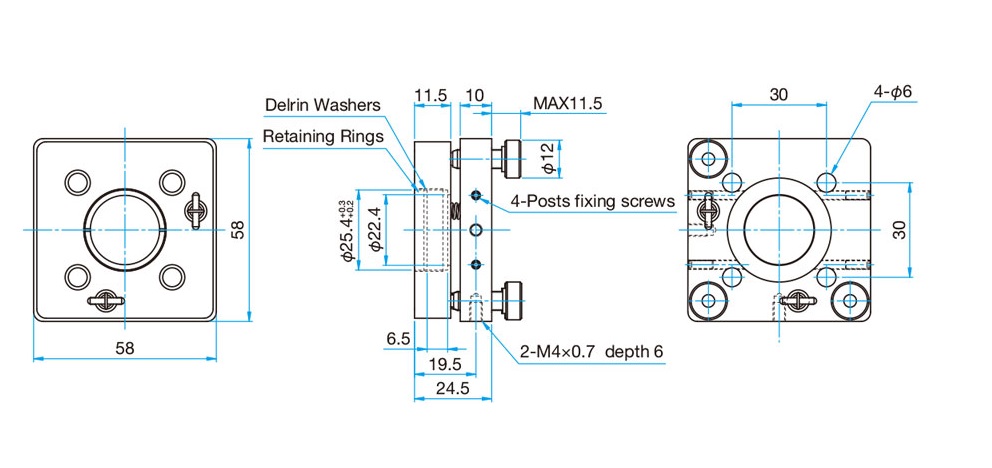

C30-KNH-M25.4 |
3-5 days
|
€107.90
|
|
|
You must be logged in to ask questions
◦ Mirror holders are supported by four (or three) rods (cages).
