Extra-Large Precision Gimbal Mirror Holders

MHD

In stock

SKU

MHD

Gimbal mirror holders designed for mirrors φ100mm to φ300mm. These mirror holders can minimize optical path length difference, a problem in large mirrors, caused by mirror tilt adjustment.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Name Diameter Delivery Price Add to cart

Large Precision Gimballed Mirror Holder for 100mm Diameter
MHD-100

100mm

1 week

€1,037.10

Compatible Optics Diameter	φ100mm
Compatible Optics Thickness	5 - 28mm
Adjustment Range /Tilt	±5.7°
Adjustment Range /Rotation	±5.7°
Coarse Adjustment Resolution /Tilt	about 0.57°/rotation
Coarse Adjustment Resolution /Rotation	about 0.57°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0008°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0008°/DIV

Large Precision Gimballed Mirror Holder for 152.4mm Diameter
MHD-152.4

152.4mm

in stock

€1,225.70

Compatible Optics Diameter	φ152.4mm
Compatible Optics Thickness	5 - 38mm
Adjustment Range /Tilt	±4.3°
Adjustment Range /Rotation	±4.3°
Coarse Adjustment Resolution /Tilt	about 0.43°/rotation
Coarse Adjustment Resolution /Rotation	about 0.43°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0006°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0006°/DIV

Large Precision Gimballed Mirror Holder for 254mm Diameter
MHD-254

254mm

6-12 weeks

€1,537.00

Compatible Optics Diameter	φ254mm
Compatible Optics Thickness	40 - 54mm
Adjustment Range /Tilt	±2.8°
Adjustment Range /Rotation	±2.8°
Coarse Adjustment Resolution /Tilt	about 0.28°/rotation
Coarse Adjustment Resolution /Rotation	about 0.28°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0004°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0004°/DIV

Large Precision Gimballed Mirror Holder for 101.6mm Diameter
MHD-101.6

101.6mm

6-12 weeks

€1,037.10

Compatible Optics Diameter	φ101.6mm
Compatible Optics Thickness	5 - 28mm
Adjustment Range /Tilt	±5.7°
Adjustment Range /Rotation	±5.7°
Coarse Adjustment Resolution /Tilt	about 0.57°/rotation
Coarse Adjustment Resolution /Rotation	about 0.57°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0008°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0008°/DIV

Large Precision Gimballed Mirror Holder for 200mm Diameter
MHD-200

200mm

6-12 weeks

€1,475.30

Compatible Optics Diameter	φ200mm
Compatible Optics Thickness	20 - 44mm
Adjustment Range /Tilt	±3.4°
Adjustment Range /Rotation	±3.4°
Coarse Adjustment Resolution /Tilt	about 0.34°/rotation
Coarse Adjustment Resolution /Rotation	about 0.34°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0005°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0005°/DIV

Large Precision Gimballed Mirror Holder Inch for 254mm Diameter
MHD-254-UU

254mm

6-12 weeks

€1,537.00

Compatible Optics Diameter	φ254mm
Compatible Optics Thickness	40 - 54mm
Adjustment Range /Tilt	±2.8°
Adjustment Range /Rotation	±2.8°
Coarse Adjustment Resolution /Tilt	about 0.28°/rotation
Coarse Adjustment Resolution /Rotation	about 0.28°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0004°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0004°/DIV

Large Precision Gimballed Mirror Holder for 300mm Diameter
MHD-300

300mm

in stock

€2,357.10

Compatible Optics Diameter	φ300mm
Compatible Optics Thickness	40 - 54mm
Adjustment Range /Tilt	±2.3°
Adjustment Range /Rotation	±2.3°
Coarse Adjustment Resolution /Tilt	about 0.23°/rotation
Coarse Adjustment Resolution /Rotation	about 0.23°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0003°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0003°/DIV

Larger Precision Gimballed Mirror Holder for 150mm Diameter
MHD-150

150mm

6-12 weeks

€1,225.70

Compatible Optics Diameter	φ150mm
Compatible Optics Thickness	5 - 38mm
Adjustment Range /Tilt	±4.3°
Adjustment Range /Rotation	±4.3°
Coarse Adjustment Resolution /Tilt	about 0.43°/rotation
Coarse Adjustment Resolution /Rotation	about 0.43°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0006°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0006°/DIV

Large Precision Gimballed Mirror Holder for 203.2mm Diameter
MHD-203.2

203.2mm

in stock

€1,475.30

Compatible Optics Diameter	φ203.2mm
Compatible Optics Thickness	20 - 44mm
Adjustment Range /Tilt	±3.4°
Adjustment Range /Rotation	±3.4°
Coarse Adjustment Resolution /Tilt	about 0.34°/rotation
Coarse Adjustment Resolution /Rotation	about 0.34°/rotation
Fine Adjustment Indicator Conversion /Tilt	about 0.0005°/DIV
Fine Adjustment Indicator Conversion /Rotation	about 0.0005°/DIV

You must be logged in to ask questions

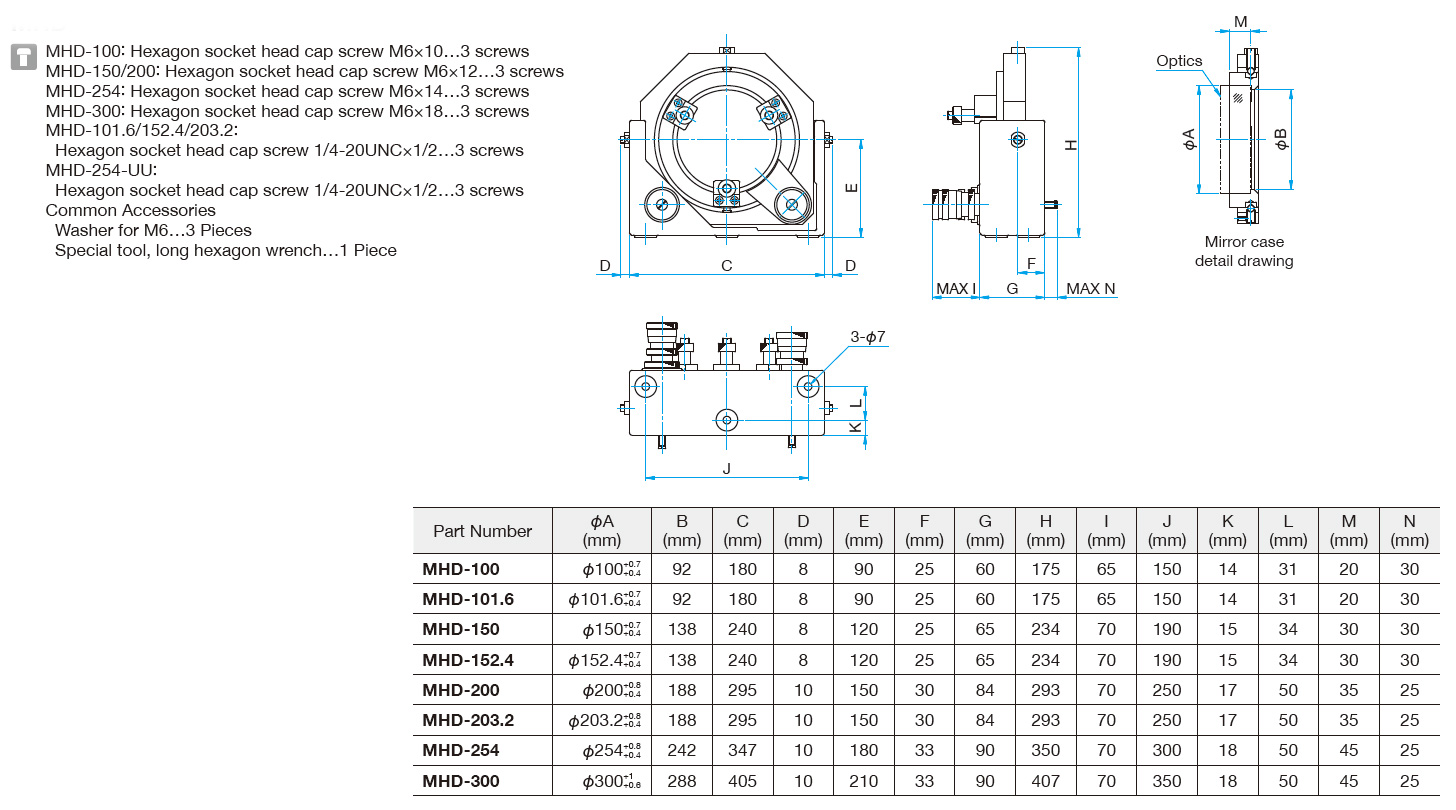

◦It is structured to fix the mirror with the three resin tip screws from the back, and it is designed to fix the mirror of various thickness.
◦Differential micrometer heads with large knobs are used for fine angular adjustment.
