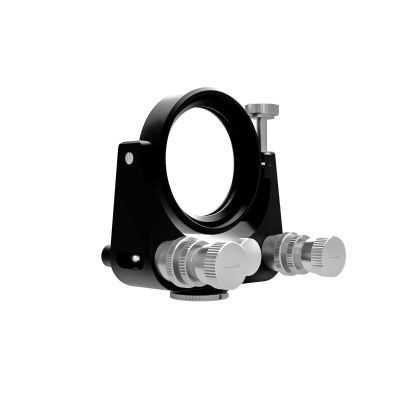

Gimballed Beamsplitter Holder M6 Micrometer Fine Adjust for 50mm Optic

BHAN-50DM-N

×
3d-simple-product
main product photo
The frame of these mounts are narrow to accommodate a greater clear aperture at 45 degrees incident. The transmitted beam diameter is just about he same as the reflected beam diameter. Appropriate for beam branching optical systems or Michelson interferometers.



More Information
Name Gimballed Beamsplitter Holder M6 Micrometer Fine Adjust for 50mm Optic
Weight 0.4000kgs
Guide
  • The RO-20-60 post (diameter φ20mm, length 60mm) is included but it can be replaced with other sizes. Special tools are required to remove the post. Different sized post can be specified at the time of purchase.
Attention
  • Resin rings are sold separately and are recommended.
  • BHAN uses retaining rings unique to this mount. Contact the Sales Division for replacements..
  • The mount will have some backlash if a large wedged beamsplitter is used. Wedges work better when they are secured on their edges. Kinematic mirror holders (MHG-NL) are recommended for circular wedges.
    • WEB Reference Catalog Code/W4001
Image Label Gimballed Beamsplitter Holder M6 Micrometer Fine Adjust for 50mm Optic
Diameter 50mm
Compatible Optics Diameter φ50mm, φ50.8mm
Compatible Optics Thickness 5 - 8mm
Fine-Adjustment Range /Tilt ±3°
Fine-Adjustment Range /Rotation ±4°
Fine Adjustment Resolution /Tilt about 0.71°/rotation
Fine Adjustment Resolution /Rotation about 0.95°/rotation
Ultra Fine Adjustment Resolution /Tilt about 0.07°/rotation
Ultra Fine Adjustment Resolution /Rotation about 0.10°/rotation
Ultra Fine Adjuster Indicator Conversion /Tilt about 0.001°/DIV
Ultra Fine Adjuster Indicator Conversion /Rotation about 0.002°/DIV
