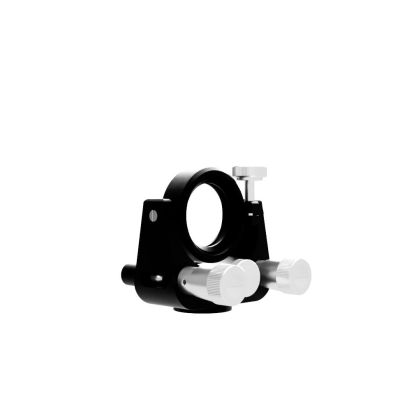

Gimballed Beamsplitter Holder 8-32UNC Micrometer Adjust for 30mm Optic

BHAN-30M-UU

Skip to the beginning of the images gallery

Gimbal mirror mounts with improved mirror frame for maintaining clear aperture at 45 degrees incidence.
Provide a transmitted beam diameter virtually the same as the reflected beam diameter.
Appropriate for beam separating optical systems or Michelson interferometer.

Details

More Information

More Information
Name	Gimballed Beamsplitter Holder 8-32UNC Micrometer Adjust for 30mm Optic
Weight	0.2500kgs
Guide	When purchasing a post (rod) RO-20-60 (outer diameter 20mm, length 60mm), posts can be mounted together. The size of each post can be changed. To assembly the posts, a vice and a plier are required. We can assembly them for you upon on request for free. The cost of the post vary according to the size. Please contact our sale division for details. for A vertical Gimbal mirror mount (BSHL) makes possible to adjust low light axis is available. (WEB Reference Catalog Code/W4012)
Attention	-
Image Label	Gimballed Beamsplitter Holder 8-32UNC Micrometer Adjust for 30mm Optic
Diameter	30mm
Compatible Optics Diameter	φ30mm
Compatible Optics Thickness	3 - 5mm
Fine-Adjustment Range /Tilt	±4°
Fine-Adjustment Range /Rotation	±4°
Resolution /Tilt	about 0.54°/rotation
Resolution /Rotation	about 0.68°/rotation

In stock

SKU

BHAN-30M-UU

€245.10
